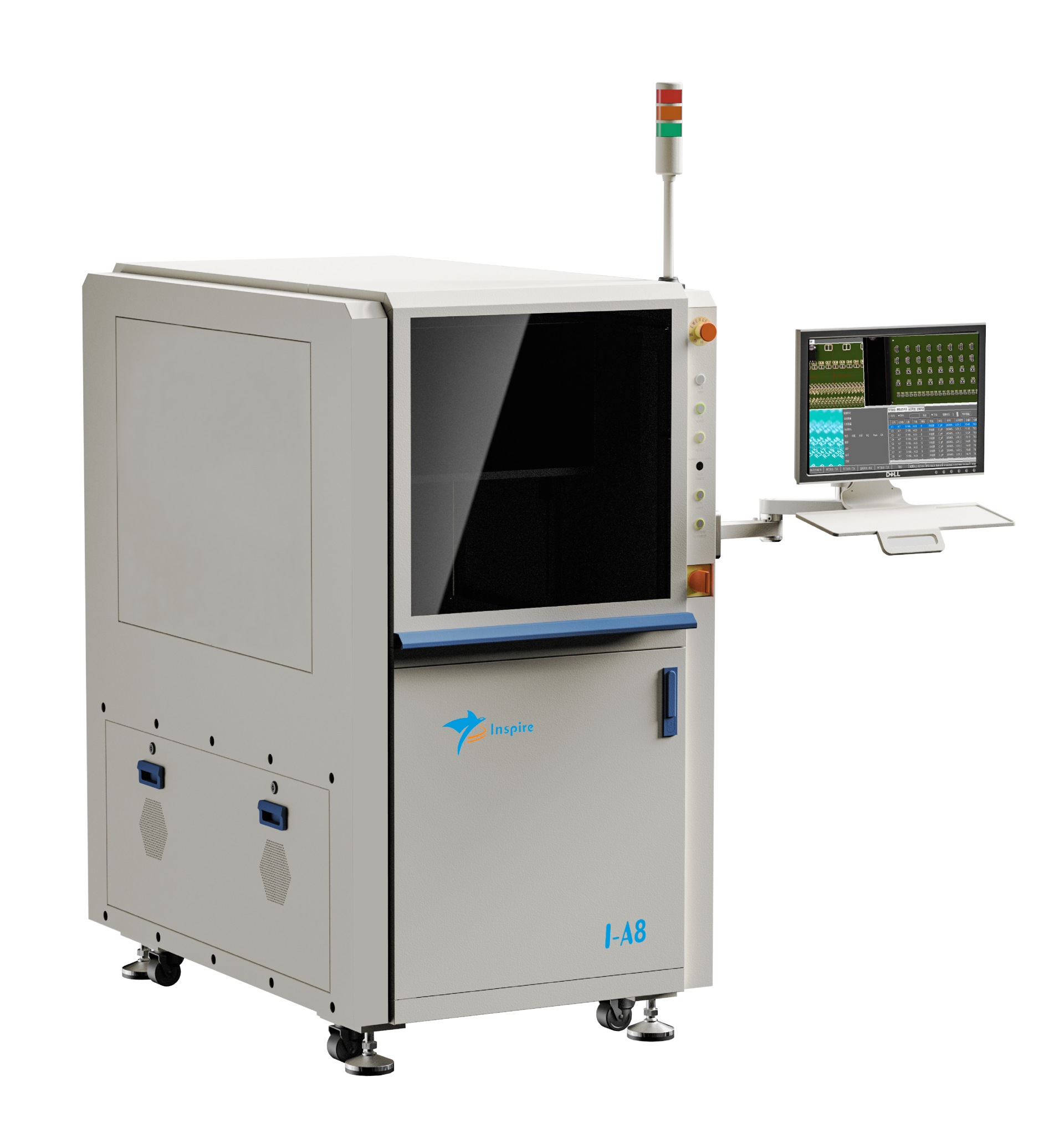

Automatic first article inspection machine
I-A8
Product Name
Automatic first article inspection machine
Product Model
I-A8
Power
AC220V 50/60Hz 2KW
Dimension & Weight
1310*860*1600mm(L*W*H) & 770kg
Motion control platform
Marble + liner motor
Motion contrl accuracy
Repeatablility:+-1um & Location: +-3um
Camera
1200W
Tonghui bridge
Frequency:20-300KHz & Accuracy:0.05% & Display range:：L0.01nH~9.9999kH、C 0.0001pF~9.9999F、R 0.1mΩ~99。999MΩ
Host configuration
CPU: I7，Memory:32G， Hard disk：256G(SSD)+ 1T(HDD)
Test past rate
More than 99%
Detection Type
Rubber board/Red rubber board
Component specifcation
01005 and above components
Test angle
Any angle
Test speed
1PCS/1S
PCB size range
50*50mm~460*400mm(L*W)
Max. height of component
Top height: 35mm、Botton height 30mm
One-minute programming
One minute programming, CAD/BOM automatic matching
Flying needle detection
Automatic rotation、pitch adjustment
Screen priinting detection
Visual determination of IC and other components of the error、leakage、reverse
Empty paste detection
Laser detection of empty position
LED lighting
0~5V adjustable voltage
Voice broadcast
The test results are announced by voice
Test report
Automatic report generation
Authority management
Three-level management rights
Language
supports multiple language switching
Advantages
Product advantage
Accurate test
01005 past rate 98%
Quick programming
One minute programming, CAD/BOM automatic matching
Intelligent positioning
System automatic positioning
Screen check speed
Synchronous detection, no time consuming
Quick needle change
One minute needle change, automatic calibration
