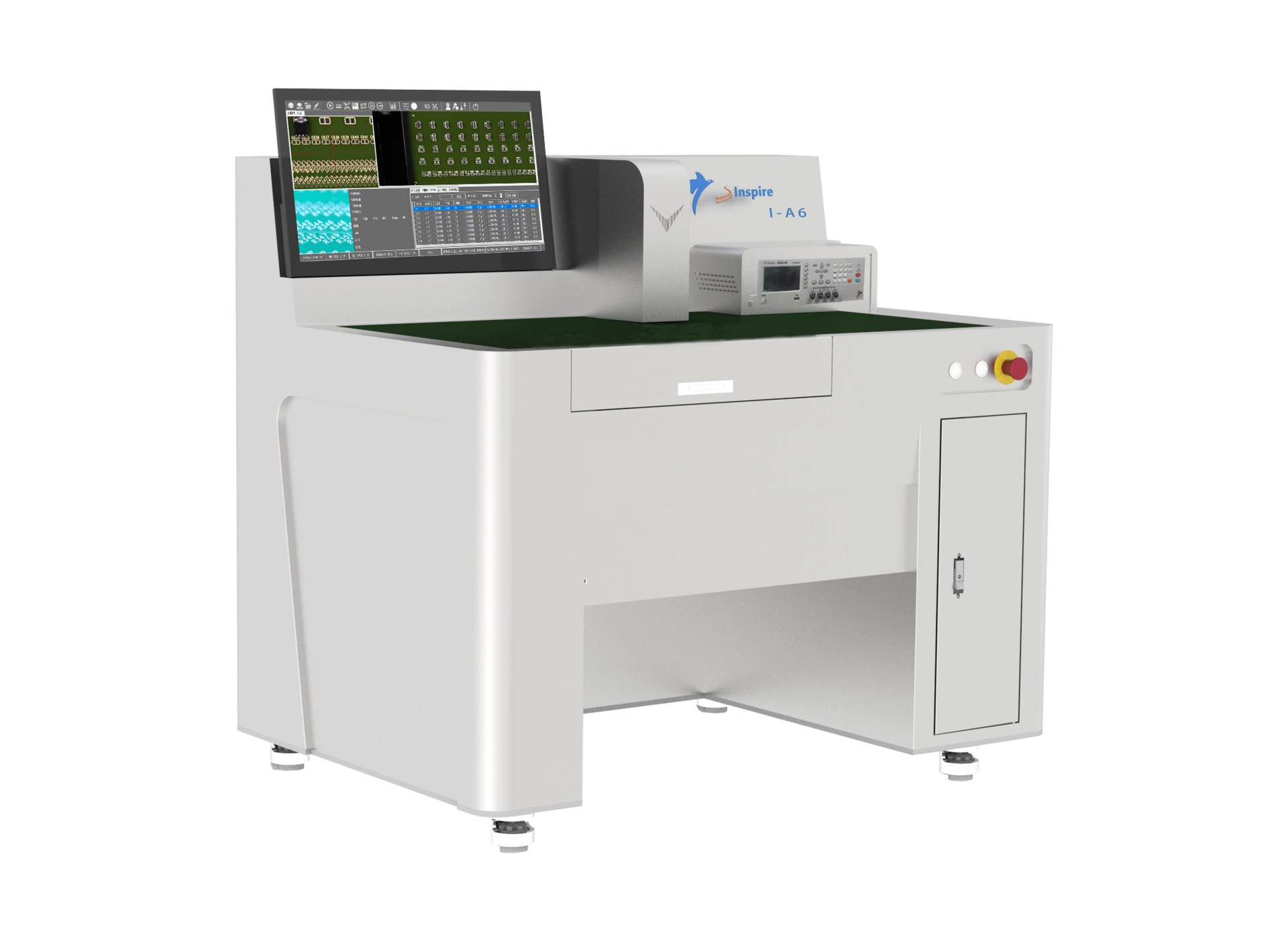

Semi-Automatic first article inspection machine
I-A6
Product Name
Semi-Automatic first article inspection machine
Product Model
I-A6
Power
AC220V 50/60Hz 2KW
Dimension & Weight
1200*860*1200mm(L*W*H) & 200kg
Motion control platform
Screw module
Motion contrl accuracy
Repeatablility:+-20um
Camera
1200W
High frequency bridge
Frequency:20-300KHz & Accuracy:0.05% & Display range:：L0.01nH~9.9999kH、C 0.0001pF~9.9999F、R 0.1mΩ~99。999MΩ
Host configuration
CPU: I7，Memory:32G， Hard disk：256G(SSD)+ 1T(HDD)
Detection Type
Rubber board/Red rubber board/Solder paste board
Component specifcation
01005 and above components
Test angle
Any angle
Test speed
1PCS/1.5S
PCB size range
50*50mm~400*350mm(L*W)
Max. height of component
Top height: 20mm、Botton height 50mm
One-minute programming
One minute programming, CAD/BOM automatic matching
Screen priinting detection
Visual determination of IC and other components of the error、leakage、reverse
LED lighting
LED light can be lighted
Voice broadcast
The test results are announced by voice
Test report
Automatic report generation
Authority management
Three-level management rights
Language
supports multiple language switching
Advantages
Product advantage
Laser guidance
Laser point navigation guidance, no manual locatiing
Zoom monitoring
Real-time monitoring, zoom in and out
Quick programming
One minute programming, CAD/BOM automatic matching
Intelligent positioning
System automatic positioning
Screen check speed
Synchronous detection, no time consuming
